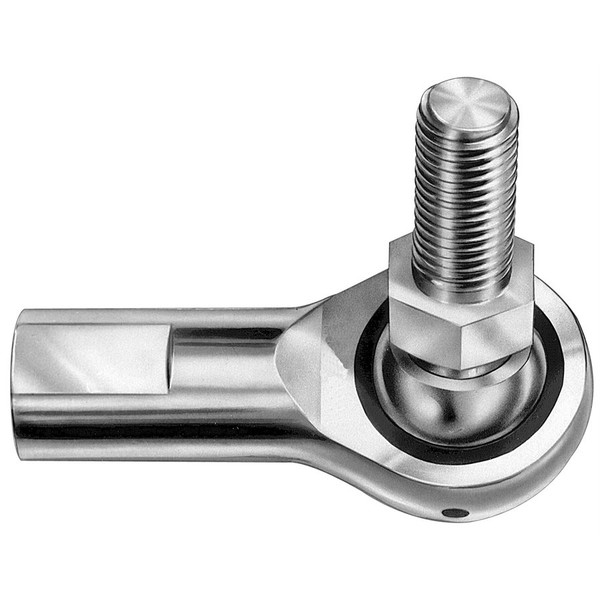

Female Rod End Ball Joint, With Stud, #10-32 Right-Hand Thread

(No reviews yet) Write a Review
$21.74     Buy in bulk and save
SKU:
AVC12034
UPC:
821641120342
Condition:
New

Across Flats: 0.312 "
Ball Center to Housing End: 1.062 "
Ball Center to Stud Thread End: 0.437 "
Ball Outside Diameter: 0.438 "
Ball Stud Neck Diameter: 0.189 "
Ball Stud Thread Length: 0.437 "
Ball Thickness: 0.312 "
Finish: Dichromate
Head Width: 0.625 "
Length: 1.375 "
Material: Housing - Low Carbon Steel, Ball-Low Carbon Steel - Case Hardened, Threaded Stud Medium Carbon Steel
Material: Ball: Low Carbon Steel, Case-Hardened
Material: Stud: Medium Carbon Steel
Shank Diameter: 0.406 "
Stud Hex Width: 0.156 "
Thickness: Head: 0.250 "
Thread Length-Internal: 0.562 "
Thread Size-External: 10-32 R.H.
Thread Size-Internal: 10-32 R.H.
Type: Female Rod End W/Stud Ball Joint
Wrench Width: 0.406 "



Downloads:

   • Manufacturer's Product Information

   • Catalog Page
