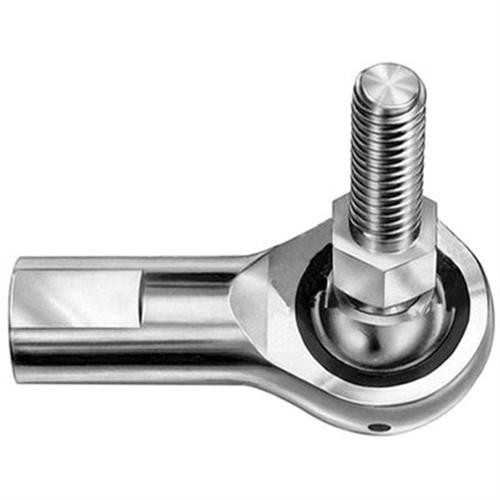

Female Rod End Ball Joint, With Stud, 1/4"-28 Right-Hand Thread

(No reviews yet) Write a Review
$19.37     Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 - 49 and pay only $18.29 each
  • Buy 50 - 99 and pay only $16.14 each
  • Buy 100 or above and pay only $13.99 each
SKU:
AVC12035
UPC:
821641120359
Condition:
New

Across Flats: 0.375 "
Ball Center to Housing End: 1.312 "
Ball Center to Stud Thread End: 0.469 "
Ball Outside Diameter: 0.516 "
Ball Stud Neck Diameter: 0.25 "
Ball Stud Thread Length: 0.562 "
Ball Thickness: 0.375 "
Finish: Dichromate
Head Width: 0.75 "
Length: 1.687 "
Material: Housing - Low Carbon Steel, Ball-Low Carbon Steel - Case Hardened, Threaded Stud Medium Carbon Steel
Material: Ball: Low Carbon Steel, Case-Hardened
Material: Stud: Medium Carbon Steel
Shank Diameter: 0.469 "
Stud Hex Width: 0.156 "
Thickness: Head: 0.281 "
Thread Length-Internal: 0.75 "
Thread Size-External: 1/4"-28 R
Thread Size-Internal: 1/4"-28 R
Wrench Width: 0.406 "



Downloads:

    • Manufacturer's Product Information

   • Catalog Page
