Commodore PET/CBM/64/c64/sx64/128/vic-20 Cassette Port Connector, Eyelet, 10 pcs

(No reviews yet) Write a Review
$13.49
SKU:
10XCASSCBM
Condition:
New

Contact Geometry: Bifurcated
Contact Material: Brass
Contact Plating: Gold
Contact Resistance: 10 mOhm
Current: 3 A
Humidity: 5 to 95 % R.H.
Insulation Resistance: 100 GOhm
Insulator: Polyphenylene
Pins: 12
Temperature Rated: 120 C
Withstanding Voltage: 1600 V (1 Minute)

Product Overview

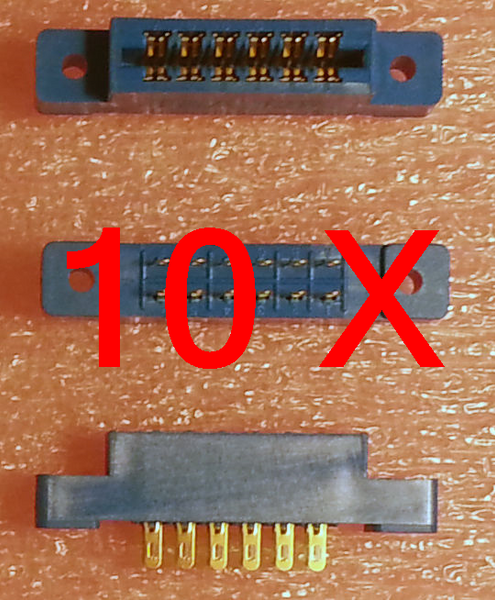

10 pcs Commodore Cassette Port Connector


Edge connectors for the cassette (datasette) port of commodore computers (such as PET / CBM and Commodore 64).


Features 2 rows of 6 contacts (marked with numbers 1...6 and letters A...F), each contact is gold-plated brass, bifurcated for a more reliable signal path.


The terminals are SOLDER EYELET, meaning they're designed for soldering to wires (poke wire through eyelet, twist, solder, DONE. It doesn't get any easier!)

These connectors can also be soldered to printed-circuit boards if the board was designed for non-right-angle connectors (i.e. if the board is double-sided and non-via'd)

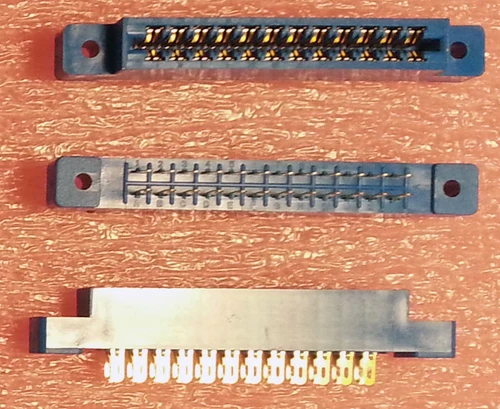

The 12-position (24 pin) user port / IEEE-488 connector is also available.
